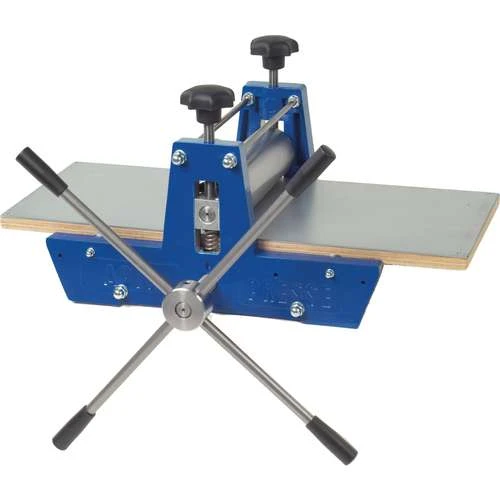

ABIG | Printing Press — 300mm X 700mm

The Abig Printing Press 300mm is a roller printing press for gravure such as linocut, woodcuts, etchings, etc. It is ideally suited for sizes up to A4 (conditionally to A3)

A handwheel with 4 bars directly drives the lower roller. With the 2 star handles, the roller pressure is adjusted as evenly as possible on the upper roller. The printing block is laid on the multiplex board which is reinforced with steel plate, making it pressure stable, and friction moves the plate between the rollers. By using a preset, consistent prints can be produced.

The printing table moves on both sides over slide guides made of technically high-quality, specially friction-minimizing plastic webs.

Technical data for this Abig Printing Press 300mm:

• Roller printing press upper and lower rollers, diameter 80mm
• Width 30 cm, printing table length 70cm
• Direct drive on bottom roller with 4-bar handwheel
• Adjustable pressure setting directly on upper roller up to a maximum of approx. 1,000kg.
• Passage upper / lower roller 27mm but CAN be increased up to 42mm.
• Multiplex printing plate with 2.5mm galvanized sheet metal plate, 4-fold guided.
• Soft pressure felt (29cm x 90cm, 5mm thick) is included
• Packed in sturdy cardboard box
• Weight: 26kg

Price per press.
